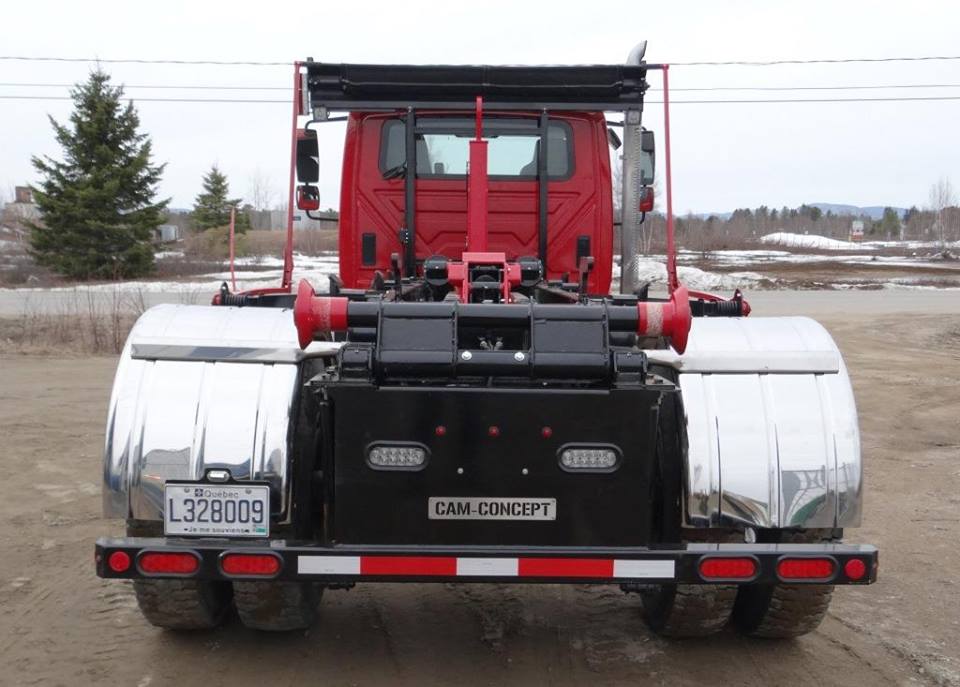

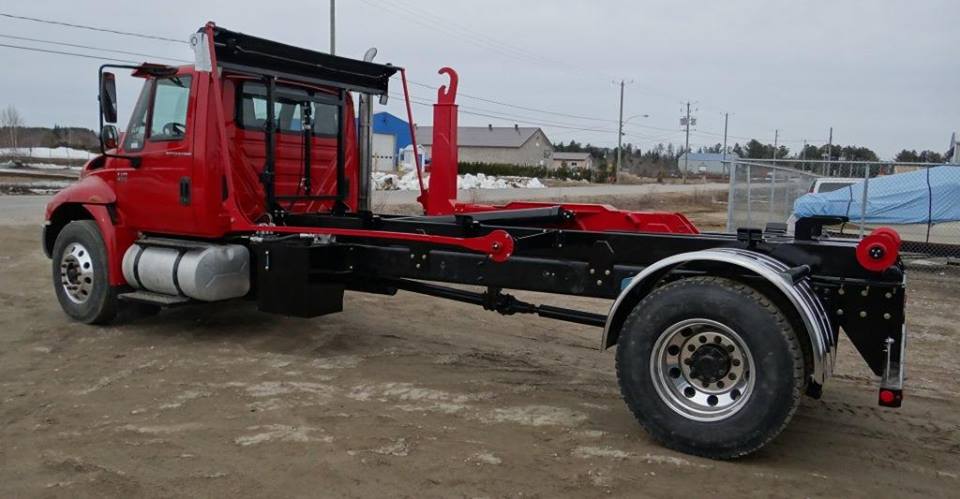

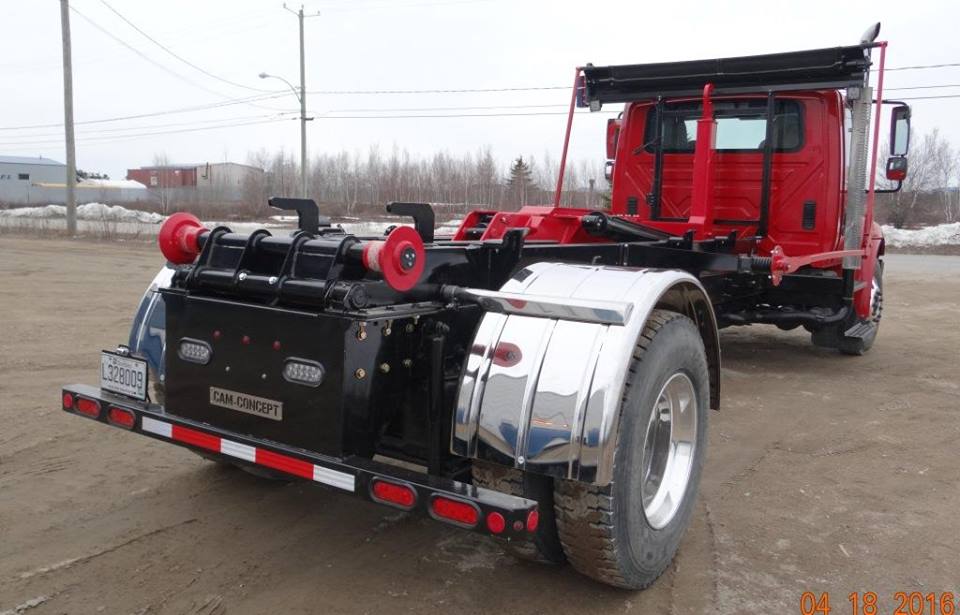

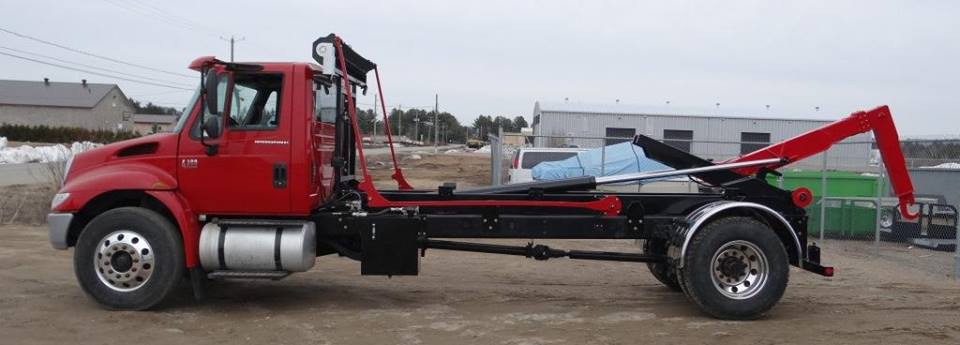

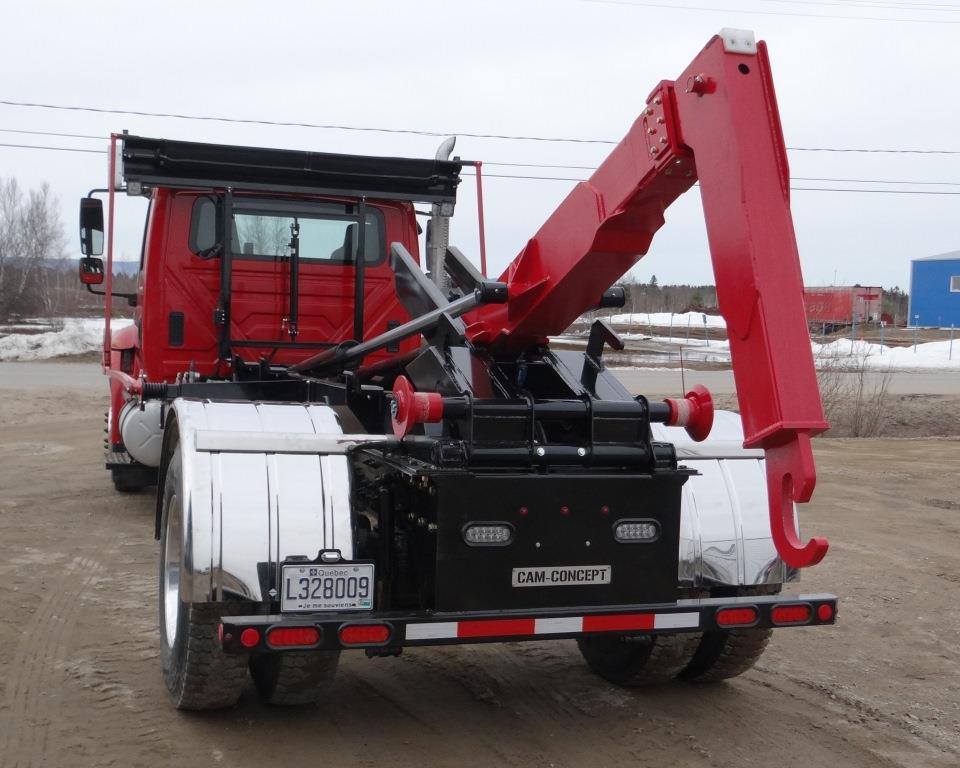

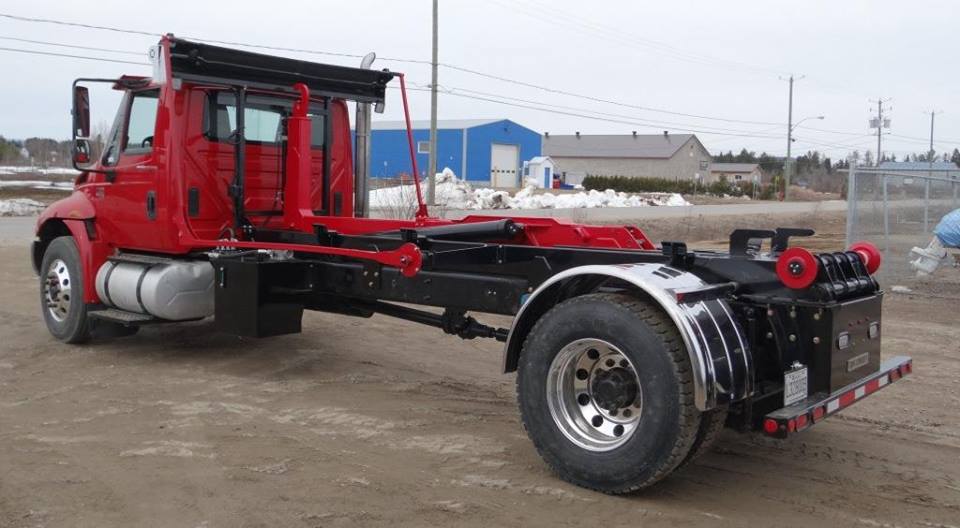

Hook Lift HL25K16PV54 -JIB:
• System Approx. weight 2,800 lbs to 3,250lbs
• Hook lift load capacity 25,000 lbs. (include the container weight)
• 16’ bed.
• Standard hook height 54’’.
• Recommended CA 144’’ to 156’’
• 6.5” hydraulic cylinder for the Hook / Dumper hydraulic cylinder.
• 3’’ Tilt cylinder
• Automatic container locking during feed.
• Hydraulic control in the truck cab by cable for lifting and feeding cylinders and electricity for other functions.
• Dump angle 53°.
• Loading angle of 33°.
• Compatible for:
o Containers length 12’ to 18’
o Platform length 19’
• 2 sections hydraulic valve Bloc valves.
• Hydraulic 15-gallon tank with filter, filling caps, and visual level.
• Epoxy Primer
• Black paint.
