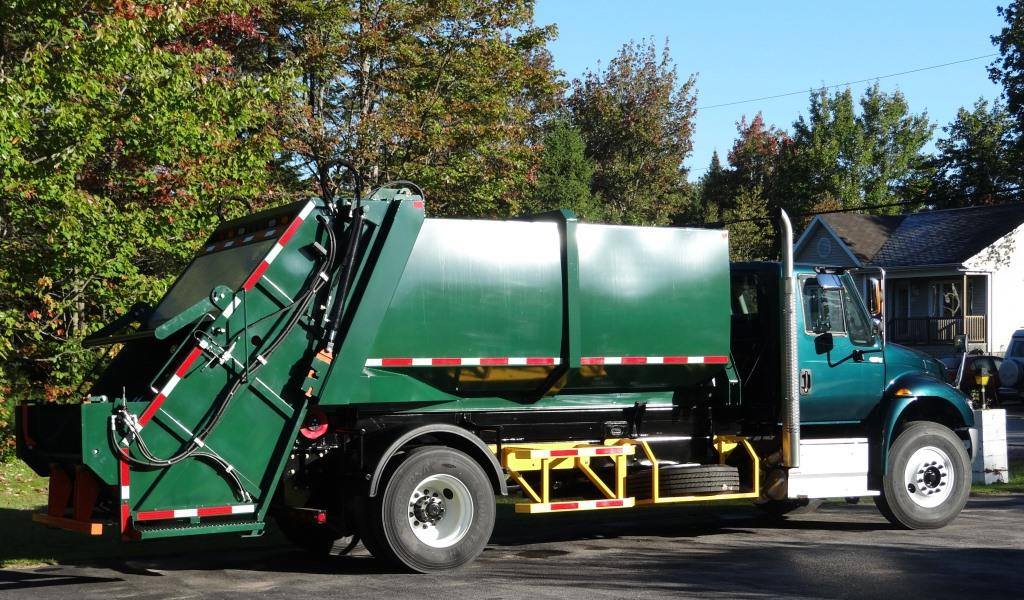

CAM-PACK 20 cubic yards, 16 ft body

Overall length : 240"
Width : 96''
Height above hook lift : 86''
Overall height (trailer / truck mounted version) 98''/124"
Recommended hook lift minimum capacity 18 000 lbs
Minimum trailer GTWR 24 000 lbs
Minimum truck GVWR 31 000 lbs
Approx. body weight :8 000 lbs

Electric system All LED light, connect to your hook lift with a standard trailer 7 pin connector
Hydraulic system Connect to your hook lift hydraulic system with 2X -12 Parker quick connections Connect to your hook lift hydraulic system with 2X -12 Parker quick connections

Click below to download PDF Technical specs and options for more information

Technical characteristics

Available options

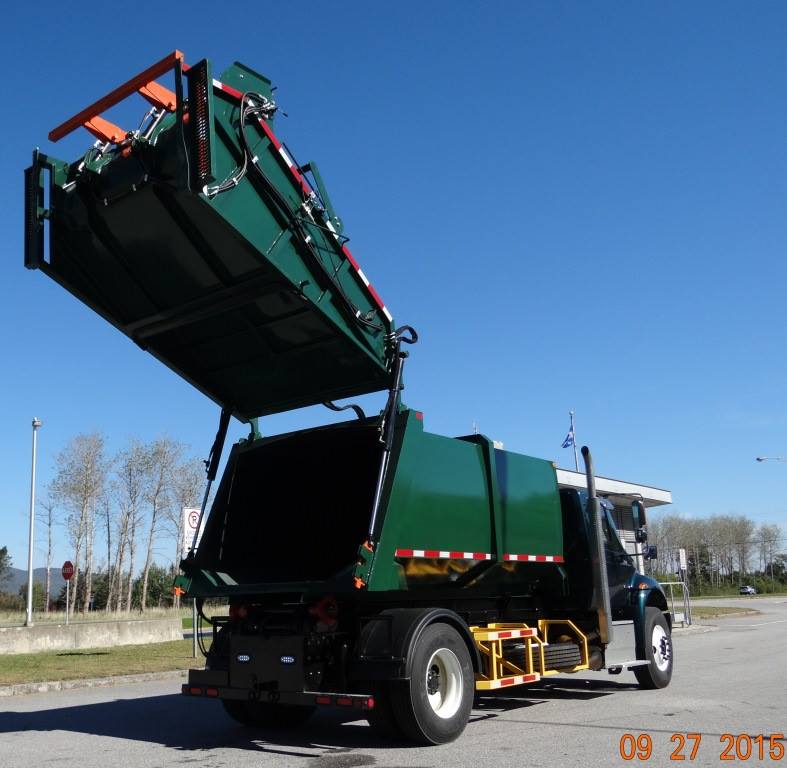

Single cart tipper with hydraulic controll
